The Manual  was only In chineese so here is my Version

Translation from Chineese to Engish via Google and a bit of Cleanup to make sence and almost readable Tables left at RTL (Right to Left)







              www.PowerMCU.com













version  user manual v1.0















                  www.PowerMCU.com



                 www.PowerAVR.com



          [email protected]


1. Overviewv


Land Rover open board with NXP's LPC1768 ARM is a second-generation ARM Cortex-M3

The core microcontrollers, embedded systems with high performance, low power consumption while the micro-processor 32 applies to

Device table, the workers pass, control, lighting control, Police Department and other domains. Land Rover to open Banban USB emulator.

Support for USB2.0 Device, dual CAN interface, the functionality of the RS-485 interface. Land Rover open board supporting rich

Routines and to make the material, easy to open with a quick line head.



Features:


 The MCU core: the Cortex-M3



● the management rates of up to 100MHz, and includes a register that supports 8 zones Paul (MPUs)
● Built-in Nested Vectored Interrupt Controller (NVIC)
● 512KB-chip Flash program memory, supports the Department of process (ISP) and in the use process (IAP)
● 64KB SRAM for high-performance CPU through instruction, system, data
● an AHB multi-moment with 8-channel general-purpose DMA controller (GPDMA)
● support the SSP, UART, AD / DA, the given device, the GPIO, etc., can be used to register to register
● quasi-JTAG / interface as well as serial and tracking serial port
● simulation tracking mode support tracking
Four low power modes: sleep, deep sleep, swap out the depth of
● 3.3V source (2.4V - 3.6V)
● Operating temperature: -40 ° C - 85 ° C
● non-maskable interrupt (NMI)
● On-chip integrated on the reset
● Built-in the  (SysTick), convenient operating system.

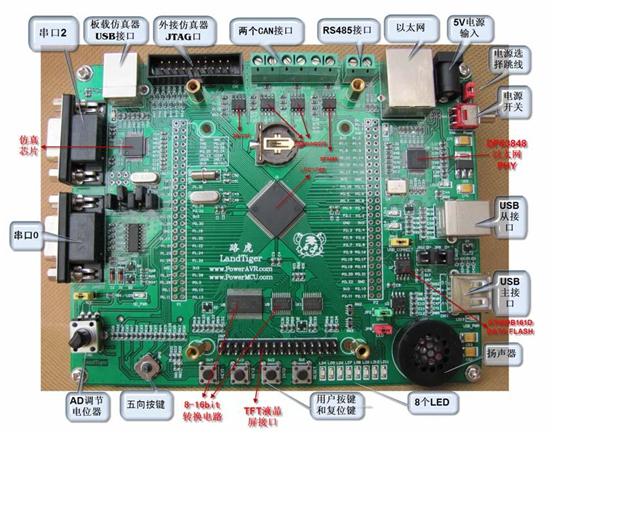

onboard resourses:


1, 2-way RS232 serial interface (using the straight-through serial port, and the way in which serial port to support the ISP under)
2,2 Lu CAN communication interface (CAN receiver: SN65VHD230)
3  RS485 communication interface (485 receiver: SP3485)
4, RJ45-10/100M Ethernet network interface (Ethernet PHY: DP83848)
5   D to A outgoing interface (do USB sound card, board speaker and sound device out)
6, AD incoming interface (digitizer in)
7 color LCD show interface (can be accessed by a 2.8-inch or 3.2-inch color TFT 320X240)
8 USB 2.0 interface, USB host and USB Device interface.
9, SD / MMC card (SPI) interface (FAT12, FAT16, FAT32 file systems)
10, IIC Interface (24LC02)
11, SPI Serial FLASH Interface (AT45DB161D)
12,2 with two functions and the INT0 Reset, 8 LED lights
13,1 a five-way into the rod (Joystick)
14, serial ISP function (no need to set jump), the quasi-JTAG emulation interface.
15, the integrated USB emulator: support simulation functions, support for KEIL, IAR and other mainstream open environment.
16, provided by an external 5V source into the supply or USB 5V source for.
17, leads all the IO, with the external road trip the second open.











2Detailed description











 2.1 Power supply (for source)

Land Rover open board uses an external 5V source into the USB interface to provide the 5V source into.

● 5V DC source adapter received a CN9, that the source jump J3 into the 1-2. External 5V source.

● USB connection to the emulator USB port CN4 source jump J3 into the 2-3, USB 5V source for. Through access from PC head for the (maximum flow 500mA limit).










Note: within the core of CN9 outlet cathode outside the core is very. The entry should not exceed 5V ± 5%.


Table 1, the source jump set description



J3 J3 for external 5V source into the 5V source of supply, USB for. Jump short
The road cap in the 1-2 external 5V for 2-3 emulator USB confessions.









Jumper

Jumper description







J3

5v external nearest the SW5 1-2



        USB power

      2-3 nearest the screw

















 2.2 Clock source (source)


Land Rover LPC17XX board from three sources: the Department, RTC, Ethernet.

Y1 12MHZ crystal, do the Department's main source, the internal RC shock absorbers Y1 can not answer.

Y2, 32.768kHZ crystal, do the source of the RTC

  U4, 50MHZ crystal, do the Ethernet PHY chip DP83848.

Note: JP1 jump short circuit (short) power  the RTC disconnected when JP1 open (open)

  power for the RTC.






2.3 Reset Mode (reset)

The reset signal in open Land Rover LPC17XX board is a low-lying reset.

Reset include the following:


Reset Press Reset (SW1)

  JTAG emulator controls  of the reset signal




2.4 Analog Input





2.4 Analog Input (Input)



The A2D input is via  P1.31 (AD0.5).  JP12 needed to be shorted to connect.





2.5 Digital Analog Conversion Output DAC



The pin P0.26 is connected to the audio amp Speaker  via JP2




2.6 USB-HOST

 。2.6 USB-HOST (USB host)

Land Rover LPC17XX open board has a USB A-type USB HOST full-speed interface (CN11).

One can use a USB port then USB, such as: U, USB mouse, USB, etc..



USB-A type connector external 5V source (this source by the process control).

To use the USB function need to be JP9 the JP11 two jump into the 3-4 position,

the USB data D +, D-allocation of USB Host interface.

Table 2 USB A B pin functions

Pin Number

Function

Colour







1

VBUS

 Red







2

D-

White







3

D+

D+







4

GND

Black





























2.7 USB-DEVICE USB从机)







2.7 USB-DEVICE (USB slave)

Land Rover LPC17XX open the board to provide a full speed USB2.0 ports (CN12), through quasi-USB-B

Type connector leads.


JP10 jump on the USB-D + signal pull-up resistor control through P2.9 pin through JP10 direct control

System, JP10 set to a 1-2 home USB is controlled by the P2.9 pin, is set to 2-3 USB out of control, direct open

USB. USB control signal is low level.

























2.8 Display Interface ( 示接口)






2.8 Display Interface (show interface)

Land Rover LPC17XX board the CN7 interface can be connected to a 2.8-or 3.2-inch 320X240 TFT color

LCD, LCD data received P2.0 ... P2.7 and pass 8bit - 16bit Road after receipt of the LCD. 8

Color LED (LD4 ... LD11) 74LV244 pass followed by the LCD data sharing.

Table 3, the color TFT LCD interface description

Pin is set as follows:

Pin Signal Description IO pin signal description of the IO pin signal description of IO







CONNECTOR



PIN NUMBER



SIGNAL

CPU IO PIN






CONNECTOR



PIN NUMBER



SIGNAL



CPU IO PIN

CONNECTOR

PIN NUMBER

SIGNAL

CPU IO PIN



















1

3V3



2

GND



3

DB00





















4

DB01



5

DB02



6

DB03





















7

DB04



8

DB05



9

DB06





















10

DB07



11

DB08



12

DB09





















13

DB10



14

DB11



15

DB12





















16

DB13



17

DB14



18

DB15





















19

CS

P0.22

20

RS

P0.23

21

WR

P0.24



















22

RD

P0.25

23

RESET

RESET

24

NC

NC



















25

MISO

P0.8

26

INT

P2.13

27

MOSI

P0.9



















28

NC

NC

29

SCK

P0.7

30

NC

NC



















31

TP_CS

P0.6

32

NC

NC





























2.9 EEPROM





Land Rover LPC17XX open board add a 24LC02 EEPROM receiving the LPC1768 the I2C0

 P0.28 access the EEPROM SCL, P0.27 access the EEPROM SDA.




2.10 DataFlash


Land Rover LPC17XX open board external AT45DB16D DataFlash SPI from LPC1768's on, P0.18, DataFlash the MOSI, P0.15 received the DataFlash's of SCK to P0.16 access

DataFlash's CS, P0.17 pick the DataFlash of the MISO.

2.11 CAN




Land Rover LPC17XX open board supports two-way CAN2.0A / B communication interface. Use SN65HVD230

(U12, U13) for the CAN device. CAN interface leads 5.08mm away from the terminals.


2.12 RS-232 AND RS-485




The way RS-485 communication interface the Rover LPC17XX open board CN10 received UART3 and two-way RS-232

Communication interface COM1, COM2 received LPC1768 the UART0 and UART2. Two control signals ISP and RESET, the same received COM1 RS-232 interface is used to write from your ISP (serial program). To use a serial write programs need to be JP6, JP7 jump are plugged.

2.13 SD card




Land Rover LPC17XX open panel SD card interface received a SSP0 LPC1768's. Signal of the SD card

Received a quasi-IO port P3.25, SD card source control signal received quasi-IO port P3.26.


2.14 Ethernet



Land Rover LPC17XX open board 10M/100M Ethernet communication interface, the Ethernet PHY chip

DP83848 (U5) and a wave of RJ45 Connector (CN5). Through RMII interface and

LPC1768 chip connected RMII interfaces.

2.15 Debug Funtion ( 功能)



Land Rover LPC17XX Banban a USB emulator to support the simulation, the next function. Support KEIL,

IAR and other mainstream open environment. The use of the method is fully compatible with JLINK (JLINK) open board is disconnected after the imitation

Really can be used for general-purpose simulation open tool. JP4 control the foot of the emulator, when JP4 open

Board emulator connected to LPC1768 JTAG interface, and then when JP4 short external emulator JTAG port external imitation,


Cut function must be broken and then only came into effect on.



















3Connectors





3.1 CAN  CN8



Pin number



Description

Pin number

Description











1

5V



4

CAN2H











2

CAN1H



5

CAN2L











3

CAN1L



6

GND















3.2 RS485  CN10









Pin number                     Description     Pin number                               Description



1

485A

2

485B









3



4















3.3 RS232  COM1COM2





RS232 connector COM1COM2 (front view)





















COM1



Pin number

Description

Pin number

Description









1

NC

6

NC









2

UART0_TXP0.2

7

RTS(控制ISP









3

UART0_RXP0.3

8

NC









4

DTR(控制RESET

9

NC









5

GND













COM2















Pin number

Description

Pin number

Description









1

NC

6

NC









2

UART2_TXP0.10

7

NC









3

UART2_RXP0.11

8

NC









4

NC

9

NC









5

GND

















3.4 JTAG CN1



























Pin number

Description

Pin number

Description









1

3.3V power

2

3.3V power









3

TRST

4

GND









5

TDI

6

GND









7

TMS

8

GND









9

TCK

10

GND









11

RTCK

12

GND









13

TDO

14

GND









15

RESET#

16

GND









17

DBGRQ

18

GND









19

DBGACK

20

GND













3.5 USB A CN11 USB B CN12





USB-A







USB-B













USB BCN12) :



PIN NUMBER

SIGNAL

PIN NUMBER

SIGNAL









1

VBUS

4

GND









2

D- (P0.30)













3

D+ (P0.29)
























 3.6 Ethernet RJ45 Connector CN5


Ethernet interface J4 positive










Pin number

Description

Pin number

Description









1

TxData+

2

TxData









3

RxData+

4

Shield









5

Shield

6

RxData









7

Shield

8

Shield

















3.7 SD card CN6



Pin number

Description

Pin number

Description









1

SDcard_CS (P1.21)

7

SDcard_DOUT(P1.23)









2

SDcard_DIN(P1.24)

8

NC









3

Vss/GND

9

NC









4

+3V3

10

SDcard_detect (P3.25)









5

SDcard_CLK (P1.20)

11

GND









6

Vss/GND

12

NC
